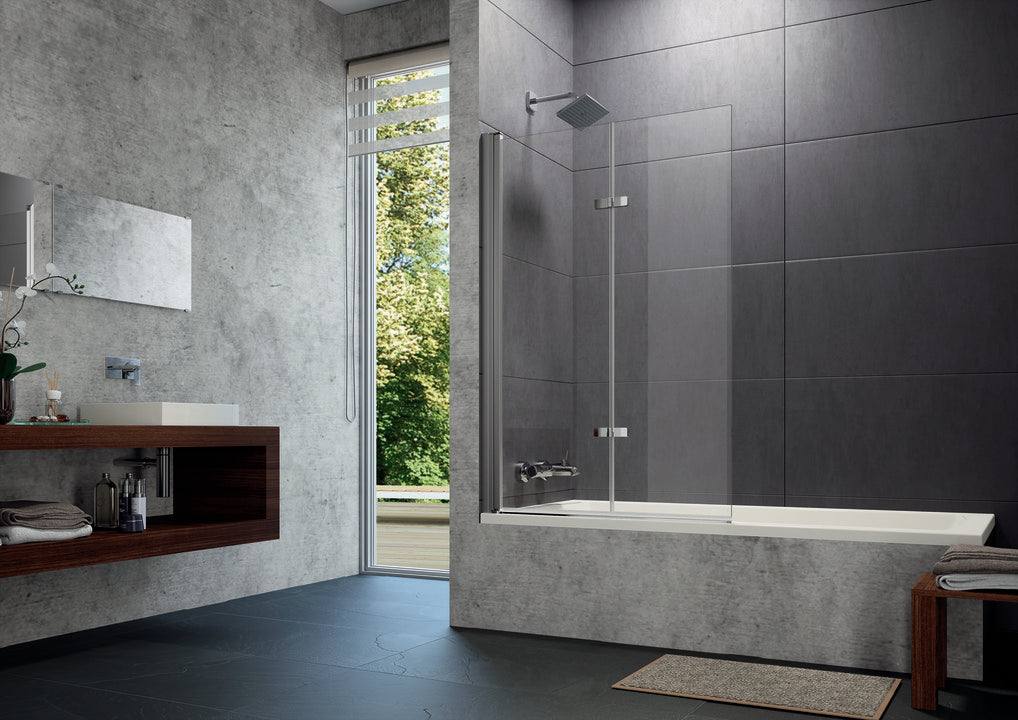

Design pure Bath screen Folding swing door 8P23

• For installation on bathtub
• Partially framed shower screen with two glass panels, can be swivelled 90°
inwards and outwards on the tubular hinge, 180° outwards on the hinge
• Glazing with 6 mm single-pane safety glass according to DIN EN 12150,
optionally with the easy-care HÜPPE Anti-Plaque surface finish
• Profiles made of high-quality anodised aluminium and hinges made of
high-quality metal
• Slopes possible

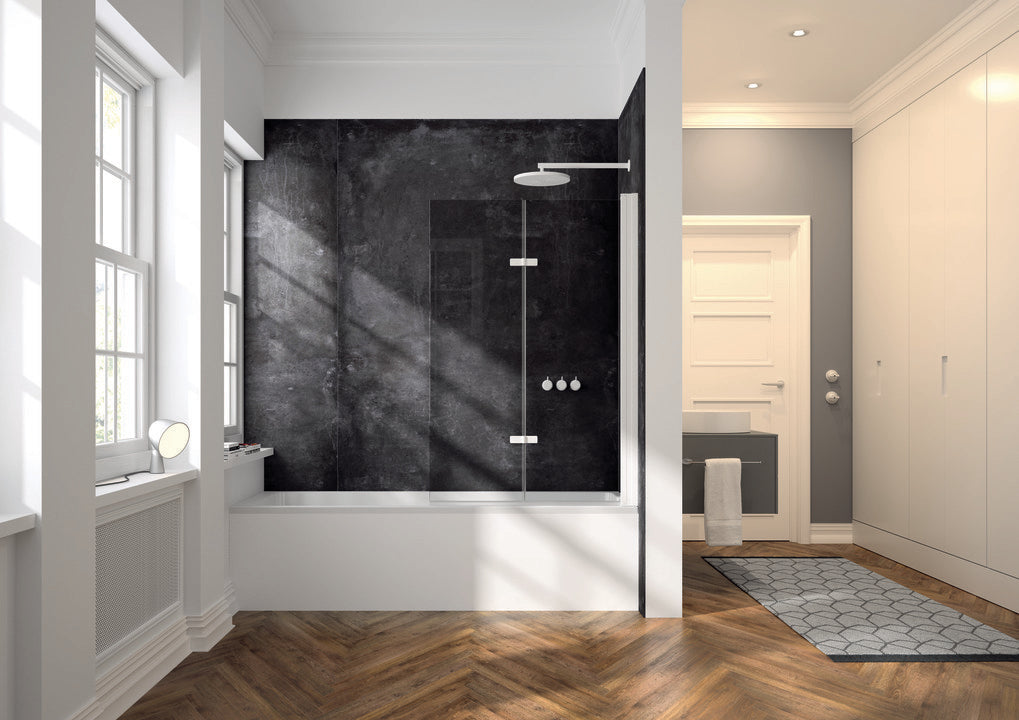

• Hinges and drip deflector strip always in high-gloss silver, except for Black
Edition, White Edition
• Adjustable in the wall profile 15 mm
• Tubular hinge with continuously adjustable rise-and-fall mechanism and
5 mm lifting effect
• With drip deflector strip (height 10 mm) for optimum watertightness, or
as easy-entry unit
• Continuous sealing profiles and water-repellent horizontal sealing strip
• Sealing according to DIN 14428
• Made in Germany
• Included in delivery: fastening materials, installation instructions
• Ten-year availability guarantee on wear parts after purchase of the
product
• Quality assurance system certified according to DIN EN ISO 9001:2015
• Energy management certified according to DIN EN 50001:2011

Mirror glass (380/381): Please state in your order which segment should be produced with mirror glass. If not specified, all segments will be made
with mirror glass.
