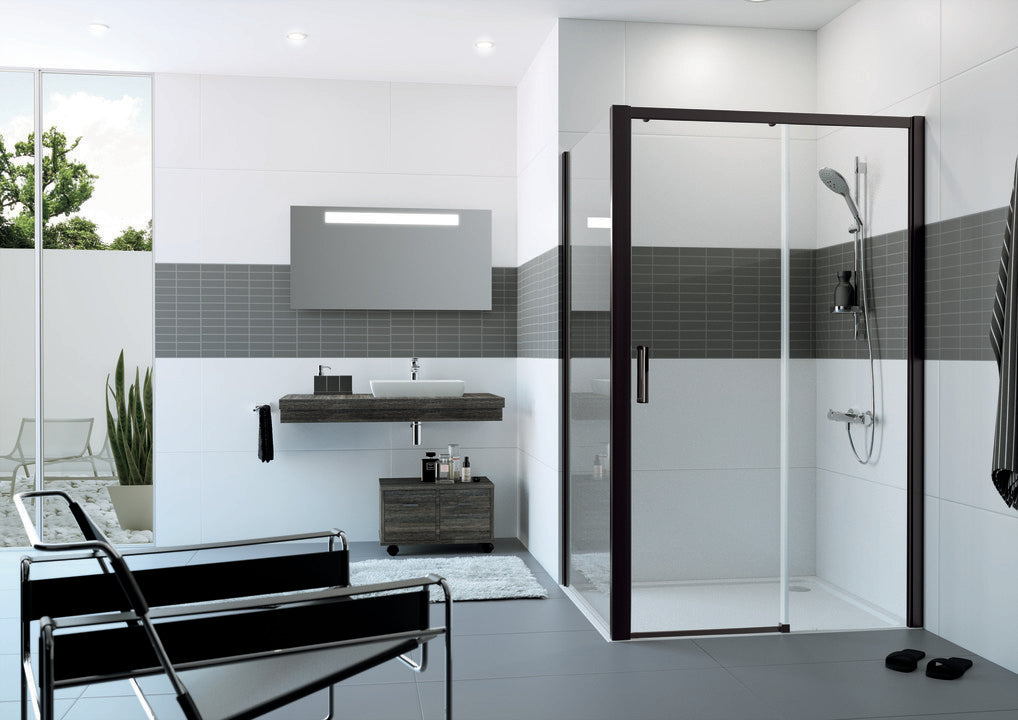

Classics 2 Sliding door, 1-panel with fixed segment C204

• For installation in a recess and for combination with Classics 2 side panel
for sliding door
• Partially framed door with a sliding door segment, each opening to one
side only, with a fixed segment
• Glazing with 6 mm (door) and 4 mm (fixed segment) single-pane safety
glass according to DIN EN 12150, optionally with the easy-care HÜPPE
Anti-Plaque surface finish.
• Profiles made of high-value anodised aluminium. Handle made of
high-quality chrome-plated metal.
• Handle always in high-gloss silver, except for Gold Edition
• Adjustable in the wall profile 25 mm. In combination with side panel: 20
mm on side of handle bar.
• Incl. HÜPPE sealing system – mounting without visible screws in the area
of the wall profile
• Sliding door segments can be unhooked on the inside for easy cleaning
• High-quality double rollers with ball bearings and elegant chrome applications
• With floor profile (height 41 mm)
• Continuous magnetic strips and sealing profiles
• Sealing according to DIN 14428
• Included in delivery: fastening materials, installation instructions
• Ten-year availability guarantee on wear parts after purchase of the
product
Installation in U-shape possible; stabilizer-set for U-shaped enclosures required.

NOTE: Installation scenario door in recess, door for side panel or installation in U-shape must be specified in the text for made-to-measure orders.
