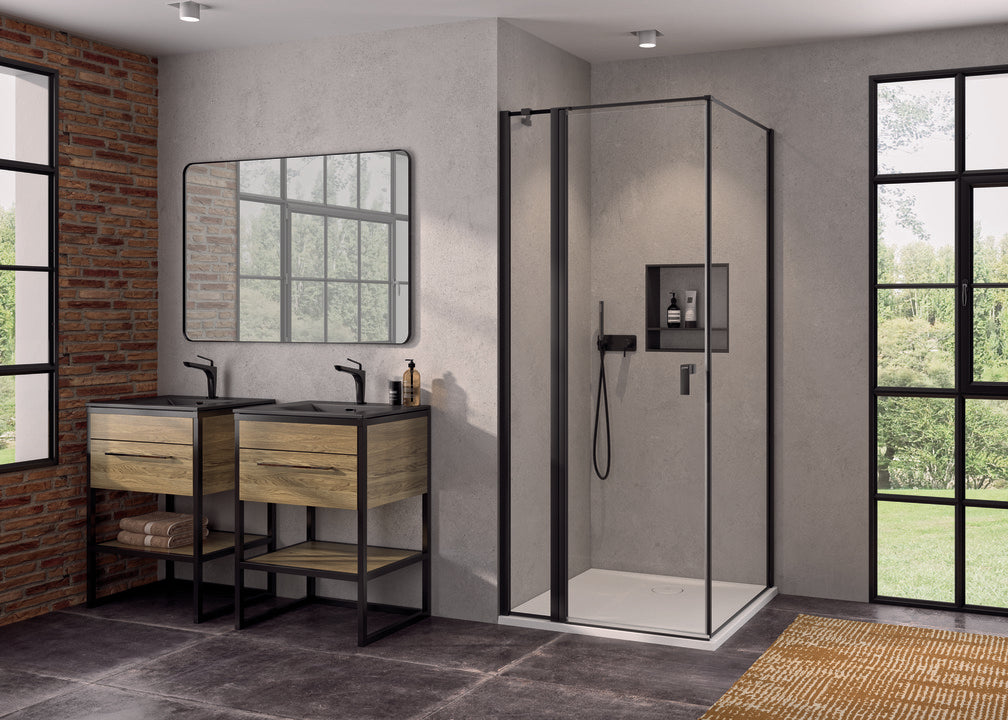

Qube Swing door with fixed segment CB03

• For installation in recess and for combination with side panel
• Partially framed door with one glass panel and fixed segment, opening
inwards and outwards, featuring an industrial design and fine visual frame
• Glazing with 6 mm single-pane safety glass according to DIN EN 12150,
optionally with the easy-care HÜPPE Anti-Plaque surface finish
• With stabilizer (inside)
• Profiles made of quality anodised / coated / painted aluminium.
• Slopes/cut-outs possible
• Adjustable in the wall profile 15 mm
• Tubular hinge with continuously adjustable rise-and-fall mechanism and
5 mm lifting effect.
• Including HÜPPE sealing system – mounting without visible screws in the
area of the wall profile
• With drip deflector strip (height 10 mm) for optimum watertightness, or
as easy-entry unit
• Continuous magnetic strips and sealing profiles, as well as water-repellent
horizontal sealing strip
• Standard height 2000 mm
• Sealing according to DIN 14428
• Made in Germany
• Included in delivery: fastening materials, installation instructions
• Ten-year availability guarantee on wear parts after purchase of the product.
• Handle and drip deflector strip always in Black Edition

A recessed door requires a supplementary recess set.
