Design pure Swing door 8P06

• For installation in recess and for combination with side panel or as corner
entry
• Partially framed door with one glass panel, opening inwards and outwards.
When mounting with side panel for inwards opening, the supplementary
set for inwards and outwards opening is required.
• Glazing with 6 mm single-pane safety glass according to DIN EN 12150,
optionally with the easy-care HÜPPE Anti-Plaque surface finish

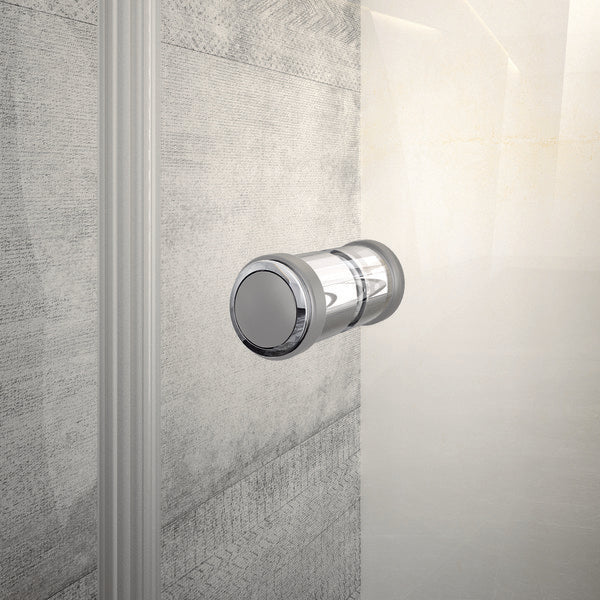

• Profiles made of high-value anodised aluminium. Handle made of
high-quality chrome-plated metal.
• Handle and drip deflector strip always in high-gloss silver, except for Black
Edition, White Edition
• Slopes possible
• Adjustable in the wall profile 15 mm
• Tubular hinge with continuously adjustable rise-and-fall mechanism and
5 mm lifting effect
• With drip deflector strip (height 10 mm) for optimum watertightness, or
as easy-entry unit
• Continuous magnetic strips and sealing profiles, as well as water-repellent
horizontal sealing strip
• Sealing according to DIN 14428
• Made in Germany
• Included in delivery: fastening materials, installation instructions
• Ten-year availability guarantee on wear parts after purchase of the
product

Profile set for recess installation is required for swing doors in recess or door combined with shortened side panel.

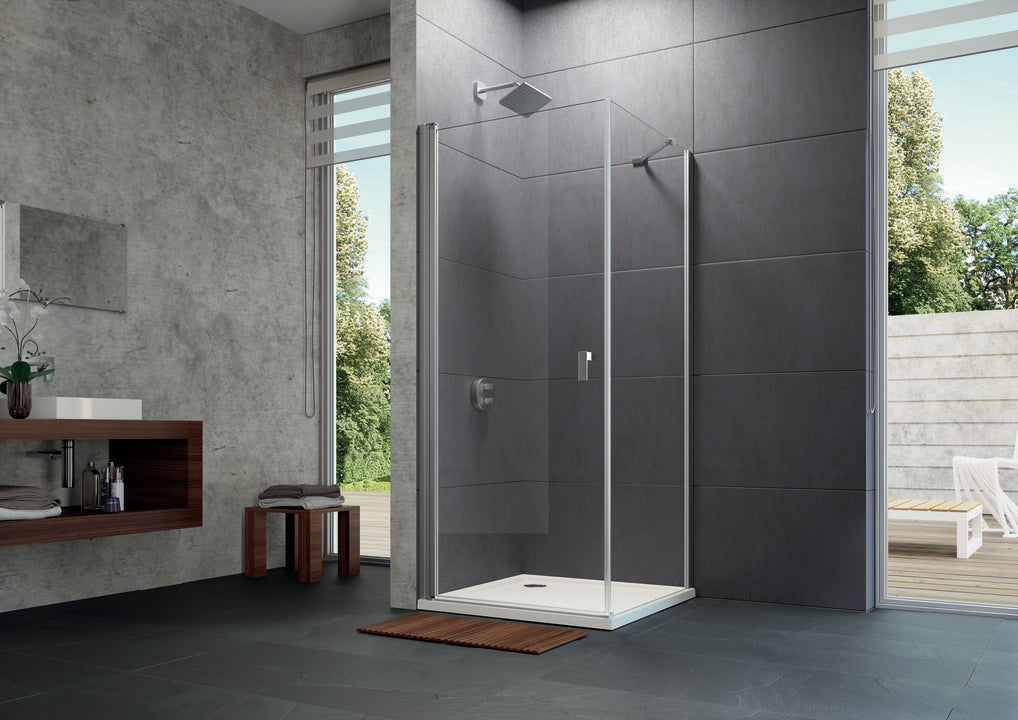

For corner solutions swing door with side panel, only outwards opening. Inwards opening also possible with inwards/outwards opening supplementary
set.
