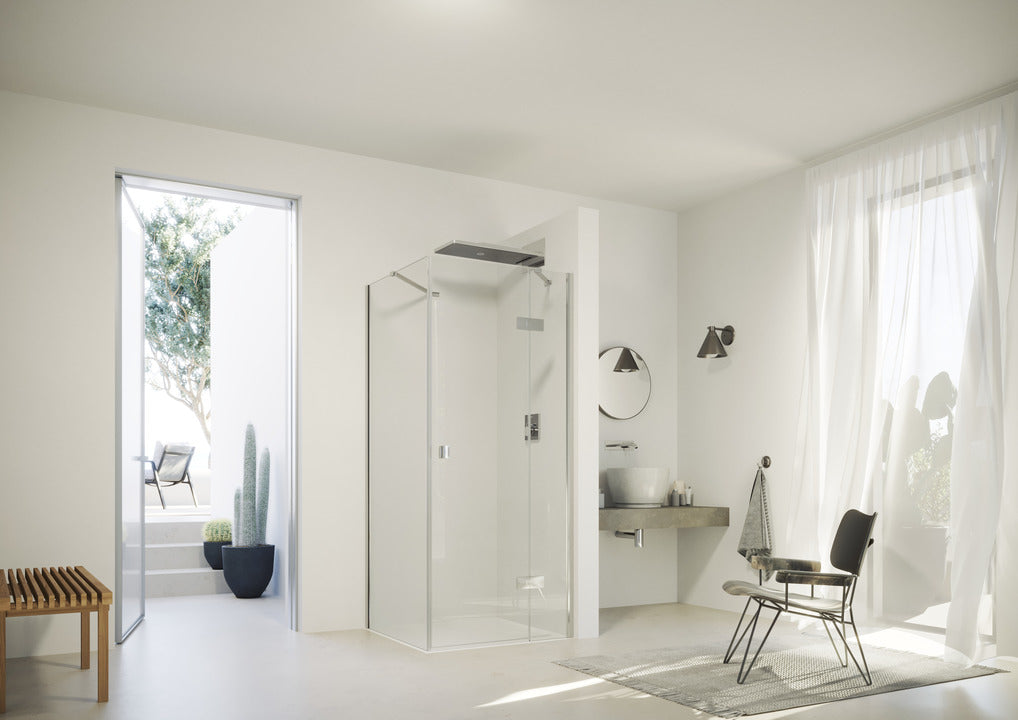

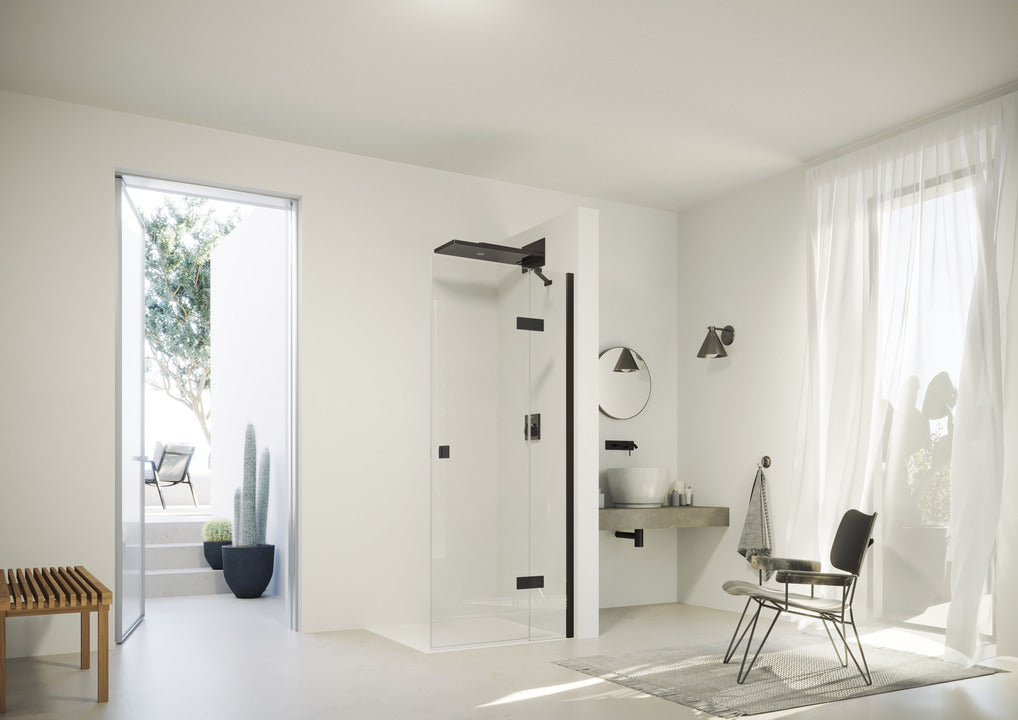

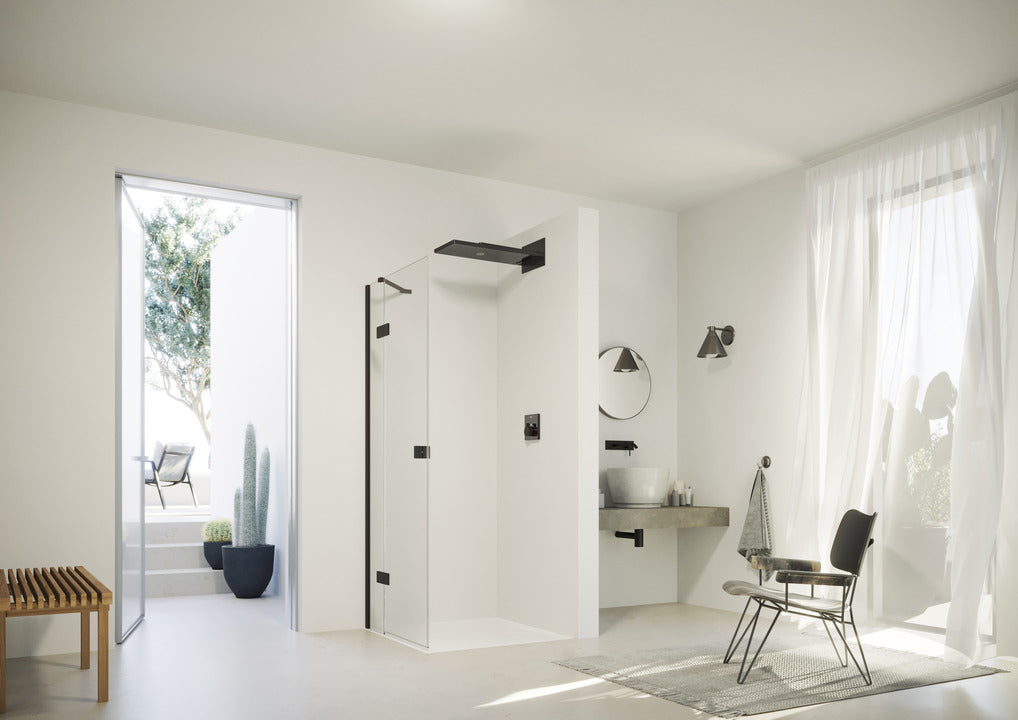

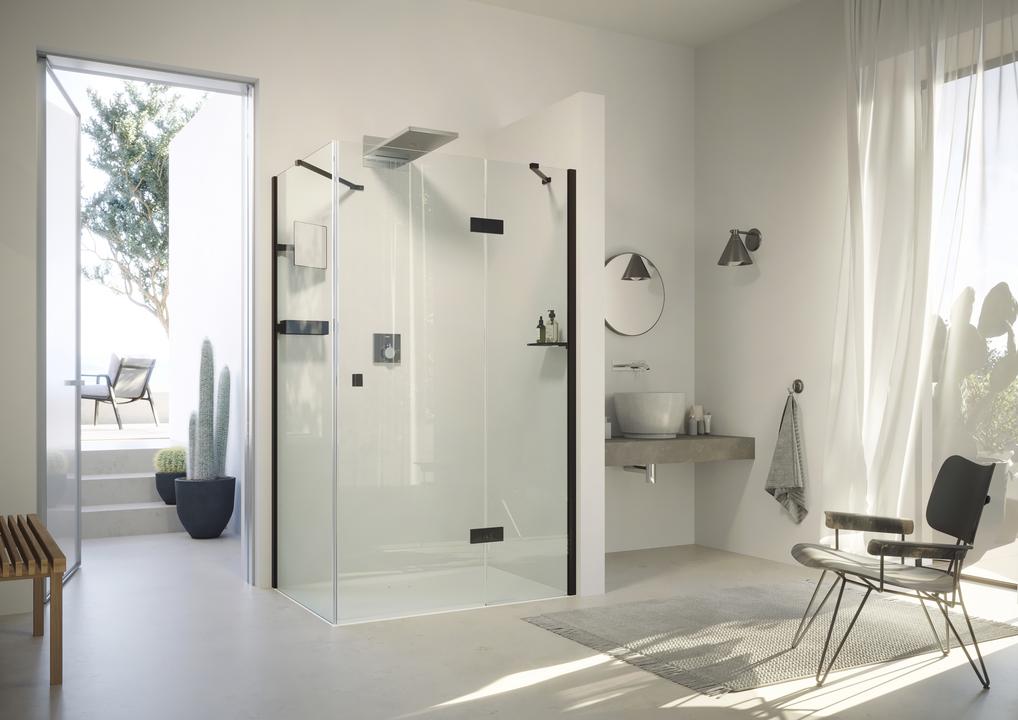

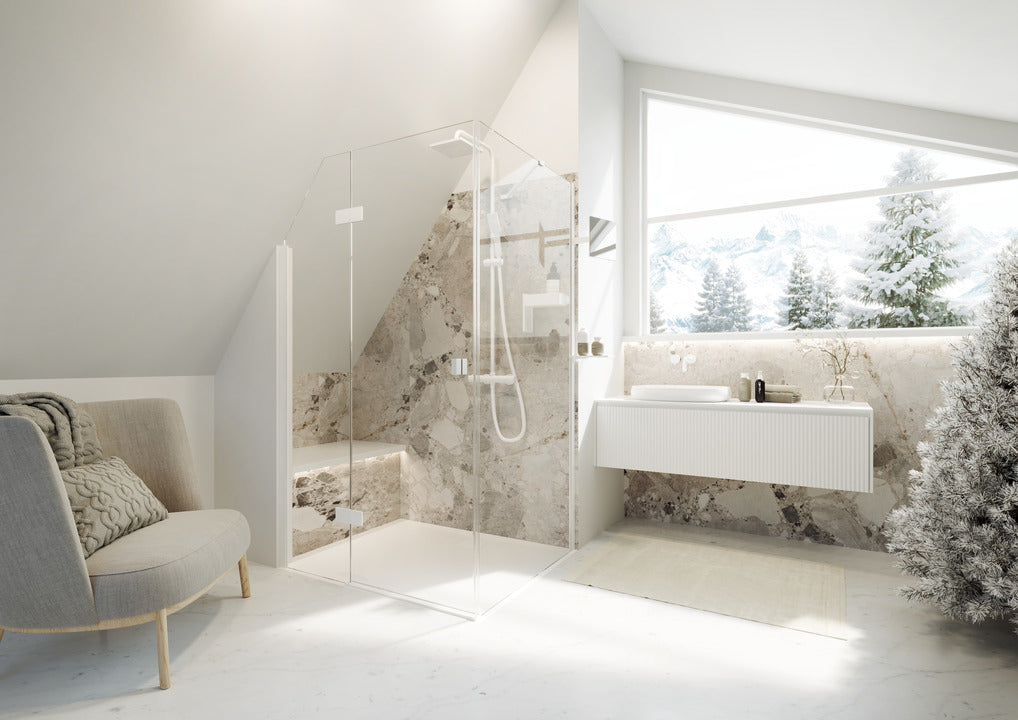

Solva partially framed Swing door with fixed segment for recess and side panel S203

• For installation in a recess and for combination with side panel
• Partially framed door with one glass panel, opening inwards and outwards,
with one fixed segment
• Glazing with 6 mm (door) and 8 mm (fixed segment) single-pane safety
glass according to DIN EN 12150, optionally with the easy-care HÜPPE
Anti-Plaque surface finish

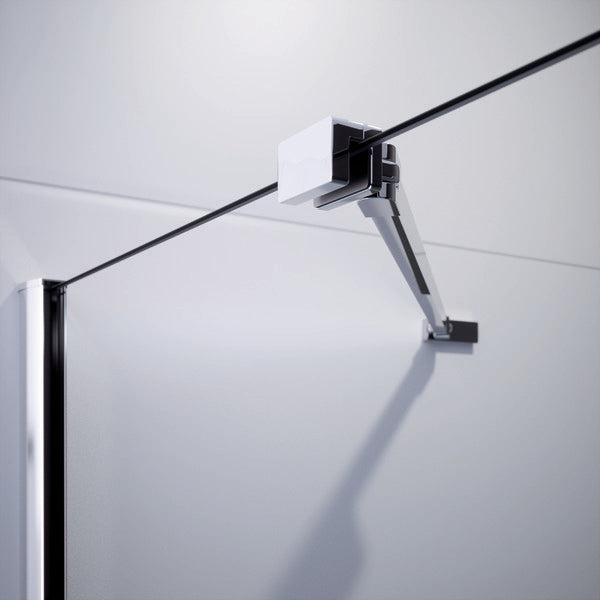

• With stabilizer (inside)

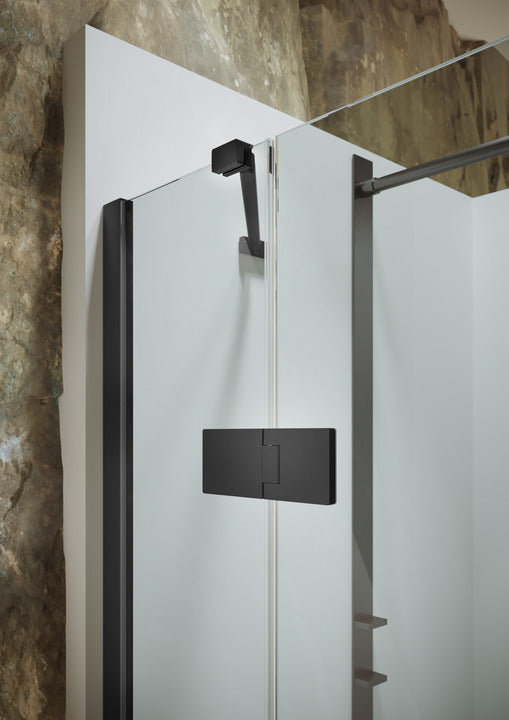

• Profiles made of high-quality anodised aluminium; handles and hinges
made of high-quality metal
• Slopes/cut-outs possible
• Adjustable in the wall profile 15 mm
• Rise-and-fall mechanism of the hinge discreetly hidden behind a cover
• Incl. HÜPPE sealing system – mounting without visible screws in the area
of the wall profile
• Flush-mounted internal fittings for easy cleaning
• With drip deflector strip (height 10 mm) for optimum watertightness, or
as easy-entry unit
• Continuous magnetic strips and sealing profiles, as well as water-repellent
horizontal sealing strip
• Sealing according to DIN 14428
• Made in Germany
• Included in delivery: fastening materials, installation instructions
• Ten-year availability guarantee on wear parts after purchase of the product
• Quality assurance system certified according to DIN EN ISO 9001:2015
• Energy management certified according to DIN EN 50001:2011

Profile set for recess installation is required for swing doors in recess or door combined with shortened side panel.
