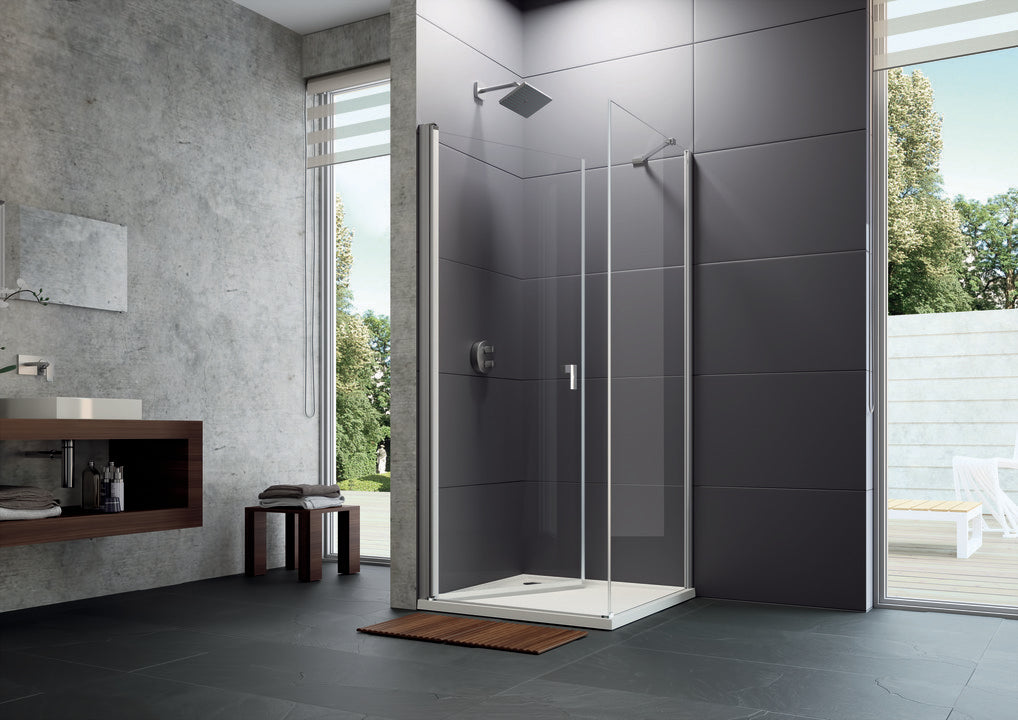

Design pure Swing door with fixed segment 8P07

• For installation in recess and for combination with side panel or as corner
entry
• Partially framed door with one glass panel and fixed segment, opening inwards
and outwards When mounting with side panel for internal opening,
the supplementary set for internal and external opening is required
• Glazing with 6 mm single-pane safety glass according to DIN EN 12150,
optionally with the easy-care HÜPPE Anti-Plaque surface finish
• With stabilizer (inside)
• Profiles made of high-value anodised aluminium. Handle made of
high-quality chrome-plated metal.
• Slopes/cut-outs possible
• Adjustable in the wall profile 15 mm
• Tubular hinge with continuously adjustable rise-and-fall mechanism and
5 mm lifting effect
• Incl. HÜPPE sealing system – mounting without visible screws in the area
of the wall profile
• With drip deflector strip (height 10 mm) for optimum watertightness, or
as easy-entry unit
• Continuous magnetic strips and sealing profiles, as well as water-repellent
horizontal sealing strip
• Sealing according to DIN 14428
• Made in Germany
• Included in delivery: fastening materials, installation instructions
• Ten-year availability guarantee on wear parts after purchase of the
product
• Handle, stabilizer and drip deflector strip always in high-gloss silver,
except for Black Edition, White Edition

Profile set for recess installation is required for swing doors in recess or door combined with shortened side panel.
STS: Only outwards opening. Inwards opening also possible with inwards/outwards opening supplementary set.
Slopes possible. For recess solutions, always with straight-cut profile on closing side.
