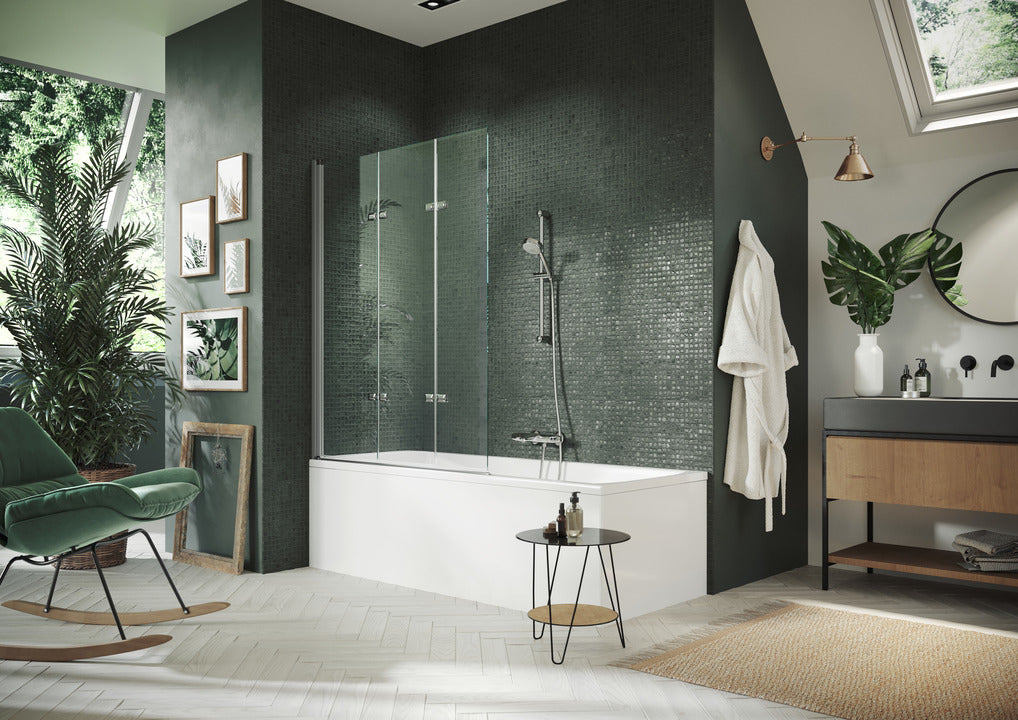

Design pure Bath screen Folding swing door 3-panel 8P65

• For installation on bathtub
• Partially framed folding swing door with three panels, swivels 90° inwards
and outwards on the tubular hinge, second and third panels can swivel
180° inwards.
• Glazing with 6 mm (width: >1200 mm; first segment = 8 mm) single-pane
safety glass according to DIN EN 12150, optionally with the easy-care
HÜPPE Anti-Plaque surface finish.
• Profiles made of high-quality anodised aluminium and hinges made of
high-quality metal
• Slopes possible in 3rd panel.
• Hinges and drip deflector strip always in high-gloss silver, except for Black
Edition, White Edition
• Adjustable in the wall profile 15 mm
• Tubular hinge with continuously adjustable rise-and-fall mechanism and
5 mm lifting effect
• With drip deflector strip (height 10 mm) for optimum watertightness, or
as easy-entry unit
• Continuous sealing profiles and water-repellent horizontal sealing strip
• Sealing according to DIN 14428
• Made in Germany
• Included in delivery: fastening materials, installation instructions
• Ten-year availability guarantee on wear parts after purchase of the
product
• Quality assurance system certified according to DIN EN ISO 9001:2015
• Energy management certified according to DIN EN 50001:2011

Mirror glass (380/381): Please state in your order which segment should be produced with mirror glass. If not specified, all segments will be made
with mirror glass.
